Aluminum 1040 Large Diameter Stringing Block With Anti-Static Oil-Resistant Feature

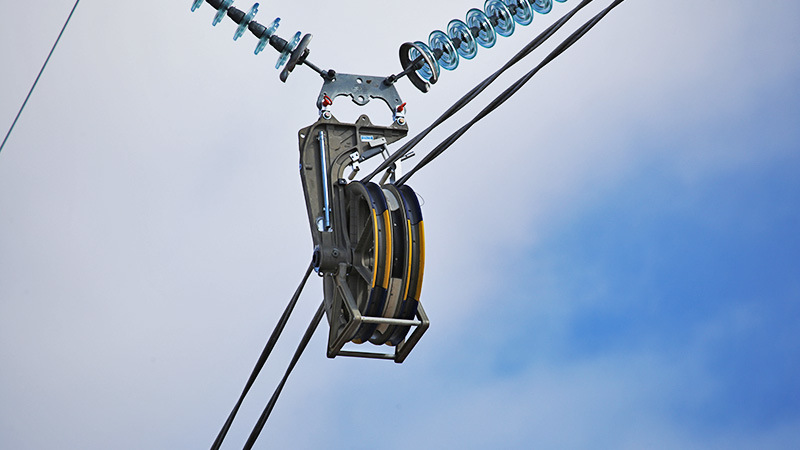

The pulley is usually constructed with a sturdy frame, often made of materials like aluminum alloy or steel, to provide strength and durability. It may also feature ball bearings or other mechanisms to reduce friction and ensure smooth rotation during the stringing process.
Overall, the 1040mm diameter stringing pulley plays a crucial role in overhead line work, facilitating the efficient and safe installation or maintenance of power conductors in various settings, including utility poles, transmission towers, and substations.
Specifications
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Feature |
| 10165 | SHDN1040 | 1 | 50 | 62 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 100 | 200 |
| 10167 | SHWQN1040 | 5 | 200 | 330 |
1.Maximum applicable conductor ACSR1120
2.Block dimensions (outer diameter * root diameter * pulley width) Φ1040Φ900125mm.
3.Rubber-lined MC nylon pulleys are available in full lining, with semi-lined pulleys customizable.
To support transmission work, Marshine Power offers tubular stringing rollers, hydraulic pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable drum winding shafts and stands - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and sold to over 50 countries worldwide. For certain projects like emergency tower restoration and cross structures, we offer customization, as well as safety tools and accessories, with no minimum order requirement. We provide free assistance with technical issues or product inquiries. Please feel free to reach out to us. Thank you.
1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.
2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.
3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.
4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.
5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.
6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.
Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.
Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
